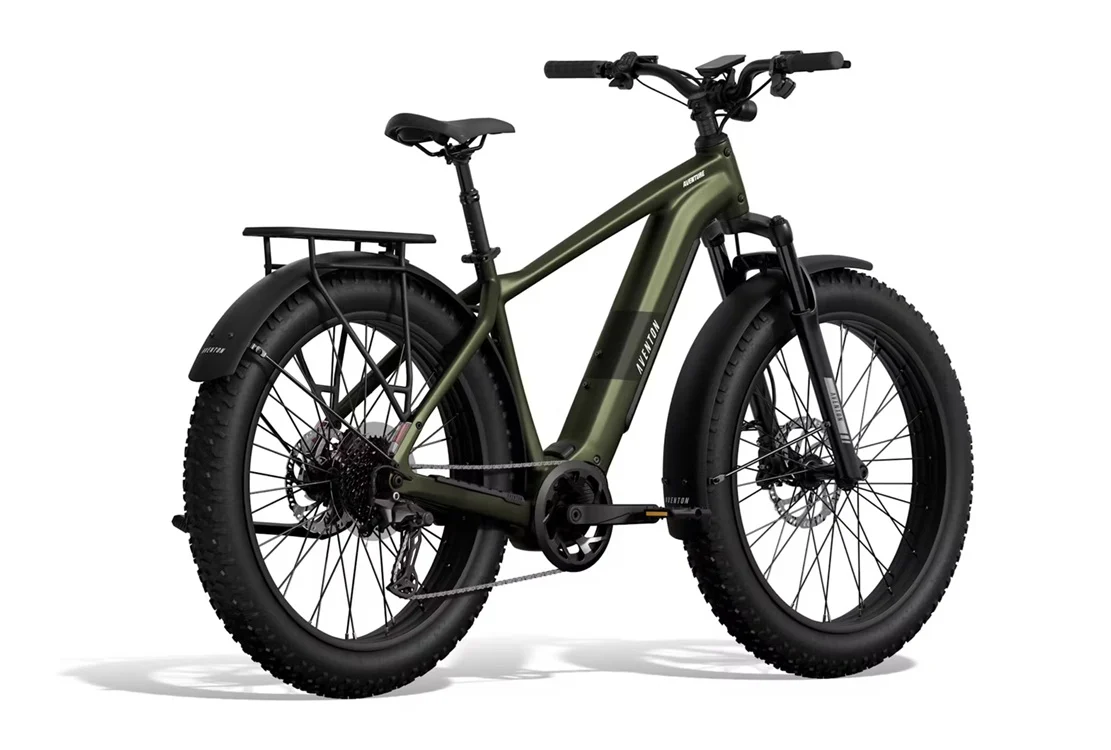

Aventon Aventure M Front Suspension Mountain E-Bike

The Aventon Aventure M Front Suspension Mountain E-Bike is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventon Aventure M Front Suspension Mountain E-Bike can't take you.

The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS^† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.



**Aventon Bikes picked up assembled at Mack Cycle have an assembly fee of $185 (this includes bikes that need to be packed for shipping).



Technical Specifications



• Model - Aventure M Ebike
• Ideal Use - All-Terrain Performance
• Weight - 73 lbs
• Total Weight Limit - 400 lbs
• Rider Height - Regular: 5'3" -5'10" | Large: 5'10" - 6'4"
• Ebike - Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)
• Range - Up to 85 Miles
• Water Resistance - Bike - IPX6 // Motor - IP67
• Battery Safety Certifications - Certified to UL 2271
• Safety Certifications - UL Safety Certified UL 2849



Frameset



• Fork - Aventon/Zoom Suspension Fork, 80mm travel, with lockout
• Rear Spacing - 190mm
• Fork Spacing - 135mm
• Frame - 6061 Aluminum



Wheelset



• Front Wheel - 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
• Rear Wheel - 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
• Tires - Inova 26x4.0 puncture resistant



Ebike System



• Motor - Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
• Motor Torque - 100Nm
• Display - Aventon BC280
• Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
• Battery Weight - 8.7lbs
• Controller - Integrated in Motor
• Throttle - Aftermarket Throttle Available for Purchase
• Sensors - Double Sided Torque Sensor Integrated in Motor
• Charger - 36V Output: 42V/ 4A
• Charging time from 0% to 100% - 5 hours
• Lights - Integrated front and rear running lights (no brake lights)



Brakes



• Front Brake - SRAM DB4 Hydraulic Disc Brakes w/o cutoff
• Rear Brake - SRAM DB4 Hydraulic Disc Brakes w/o cutoff
• Front Brake Rotor - Sram G2 200mm 6-Bolt
• Rear Brake Rotor - SRAM G2 180mm 6-Bolt



Drivetrain



• Rear Derailleur
• Shimano Cues 10-Speed Shifter - E-Shifter
• Chain - 9/10/11 Speed 124L
• Cassette - Shimano Cues 10-Speed 11-39T
• Chainring - 44T
• Crankset - Aventon 170mm ISIS Splined
• Pedals - 9/16" Alloy Platform



Cockpit



• Saddle - Aventon Saddle
• Seatpost - Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
• Seatpost Clamp - 34.9mm
• Handlebars - Aluminum 31.8, 720mm
• Grips - Aventon Lock on grips
• Headset - Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs



Included Accessories



• Kickstand - Included, rear mount
• Rear Rack - Included
• Fenders - Included

*Specifications subject to change without notice



** Mack Cycle recommends to bring your new Aventon bike to your local mechanic for assembly.  Your local mechanic will charge a fee to complete assembly.



**Aventon Bikes picked up assembled at Mack Cycle have an assembly fee of $185 (this includes bikes that need to be packed for shipping).



For more information, feel free to email us at orders @ mackcycleandfitness dot com or hit us up on the live chat and we are happy to assist.
