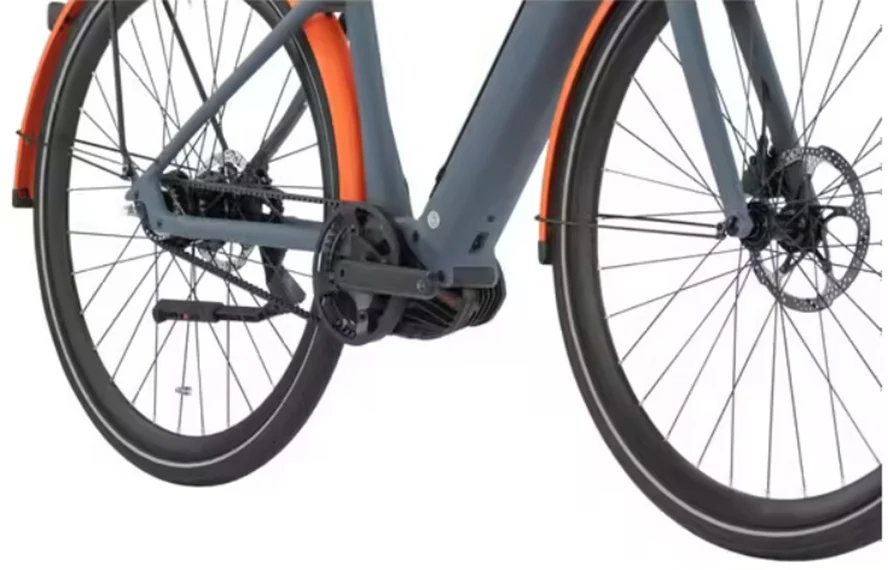

BMC 257 AMP AL One Belt Drive Bosch Active E-Bike

The BMC 257 AMP AL One Active E-Bike is an elegant, fast commuter e-bike with Bosch Performance Line CX Drive Unit, 625 Wh PowerTube Battery and Kiox Display ICS MITT x Redshift Suspension Stem - Integrated Cockpit Design.



Frameset



• Frame - 257 AMP Premium Aluminum | Smoothwelded | Integrated Battery | Internal Cable Routing | Powder Coat Finish | Post Mount Disc | Internal Gear Hub dropouts
• Fork - 257 Premium Aluminum | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle



E-System



• Drive Unit: - Bosch Performance Line CX
• Battery Pack - Bosch PowerTube | 625 Wh | Certified by Intertek Testing Services NA, Inc.
• NYC Lithium-Ion Battery Safety Guidelines
• Display - Bosch Kiox
• Drive Unit Control - Bosch Kiox
• Charger - Bosch Compact Charger



Cockpit



• Stem - ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
• Handlebar - BMC LSB 01



Seat



• Seatpost - BMC LSP 02
• Saddle - Selle Royal Vivo



Drivetrain



• Crankset - Miranda Classic x Bosch | Gates CDX
• Chainrings - Gates Belt 113 CDXrings
• Cassette - Gates CDX
• Cassette Size - 22T
• Chain - Gates Belt 113 CDX
• Shifters - SHIMANO Alfine (SL-S7000) | Rapidfire Plus
• Gears - 1 x 8



Brakes



• Brake Levers / Calipers - TEKTRO HD-EU818 / 817
• Rotors - TEKTRO TR25
• Rotor Size (F/R) - 180 / 160mm



Wheels



• Rims - SR500
• Hubs (F/R) - CL-712 | SHIMANO Alfine 8
• Tires - Pirelli Angel GT | 37mm



• Tire Clearance - 42mm
• Weight Without Pedals - 21.9kg
• ASTM Classification - Class 1 - 20MPH
• System Weight Limit - 120kg (264.55 lbs)



**Specifications subject to change without notice

• Mack Cycle recommends that any BMC bike that Mack Cycle ships to a customer be assembled by an authorized mechanic.  Expect to pay an assembly fee to your authorized mechanic who will assemble this bike.
• The incredible blowout sale price on this bike reflects any minor scratches/blemishes.



For more information, feel free to email us at orders @ mackcycleandfitness dot com or hit us up on the live chat and we are happy to assist.
